The mandibles are recognizable.
The surface needs a sculptor.

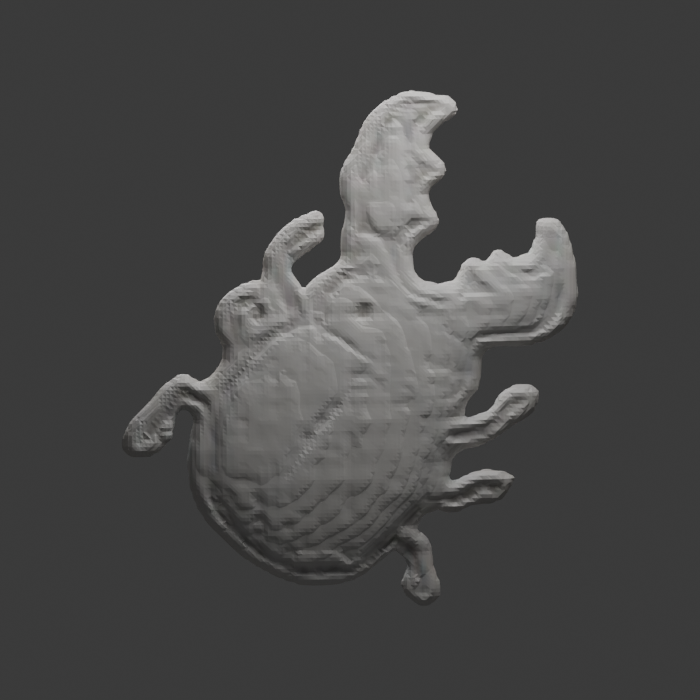

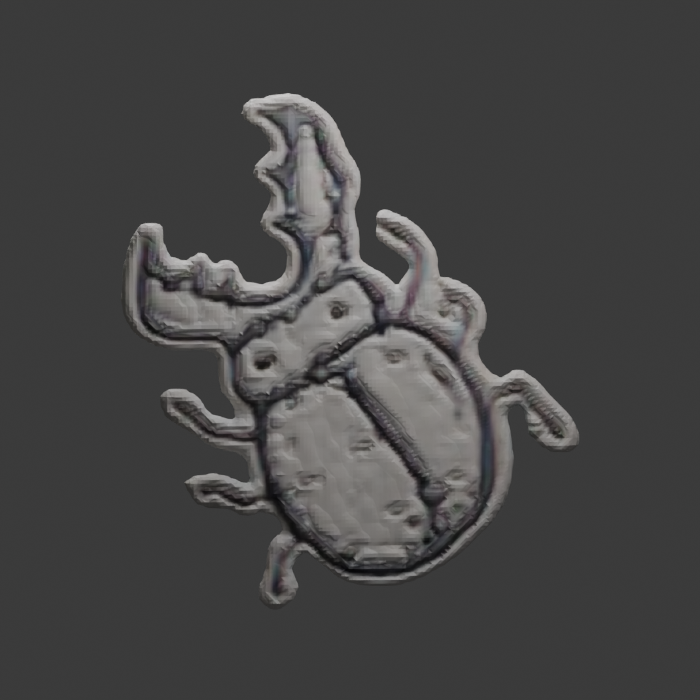

The mandibles and leg silhouette remain recognizable. The body is shallow, the wing and surface hatching are coarse, and the rough reverse is inferred. These remain unfinished studies for Mattea’s likeness review.
Four destinations. Separate files.
All 50,536 triangles and generated vertex colors remain in the unrigged game reference. The print master retains the complete single closed body; no disconnected component or zero-area face was dropped. The display is about 150.2 mm high. The selected keychain is about 53.49 mm high, with a rear attachment; its full depth is about 11.42 mm. The standing mini is about 29.26 mm high on a nominal 25 mm circular base.
- Download game prototype · 0.14 × 1.00 × 0.88 meters
- Download display prototype · 50.00 × 127.05 × 150.20 millimeters
- Download keychain prototype · 11.42 × 39.67 × 53.49 millimeters
- Download mini prototype · 24.99 × 24.99 × 29.26 millimeters
Actual print STLs pass independent single-part closure, winding, positive-volume and nonzero-face checks. Fine details, support stems, ring fit, sliced layers and strength remain pending. Every shown view is a digital render; physical product photos await supervised samples.
A loop with measured openings.
The first exact-union keychain has six non-manifold edges and remains blocked. A changed 0.10 mm voxel study has a closed main shape plus a tiny separate fleck. It also remains blocked as a full mesh. The selected third study retains all 680,348 main triangles unchanged; the visually reviewed 12-face fleck stays in a separate sidecar and both full earlier revisions are preserved. Its rear post connects near 70% of body height. Five parallel opening sections preserve about 5 mm of space; the central section measures 5.01 mm. These measurements do not establish minimum junction thickness, pull/drop strength or real ring fit.
Choose the next detail to refine.
- Display: 0/512 chords below the editable 1.6 mm review assumption.
- Keychain: 147/512 chords below the editable 2.4 mm review assumption.
- Mini: 201/512 chords below the editable 1.6 mm review assumption.
The CPU review used 1,536 actual-STL chords, 256 box calibration rays and 96 independent full-mesh comparisons, which agree. Chords locate review targets; they do not certify minimum walls, self intersections or printability. Actual nozzle, material, sliced layers and artist likeness must guide refinement.
Read the sample measurements →
