The sculpture notebook · seated patchwork creature study

Stitches.
Four futures.

A seated patchwork creature from Mattea’s drawing becomes four separate prototype paths: game reference, display figure, carried keychain and tabletop mini.

Original seated patchwork creature artwork by twikoi — Native ink, RGB and reviewed alpha preserved.

02 · Actual inferred geometry

Actual patchwork display prototype on a base

Digital display render. Artist and physical validation pending.

The stitched outline is recognizable.
The surface needs a sculptor.

The triangular ear, seated silhouette and heart patch follow the drawing. Face and stitch relief is coarse; the inferred back repeats facial features with rough marks that need Mattea’s direction. This remains an unfinished dimensional study.

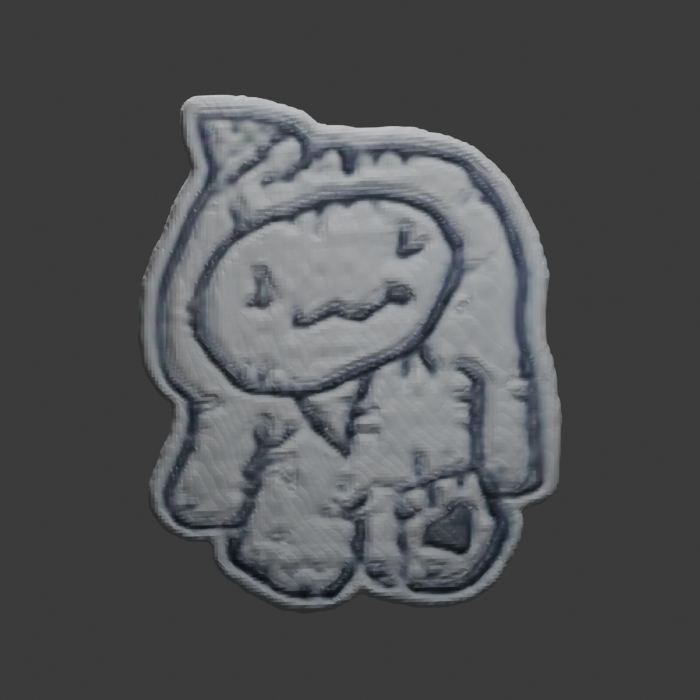

Actual generated patchwork front with coarse face and stitch marks — Raw front · recognizable outline, unfinished detail.

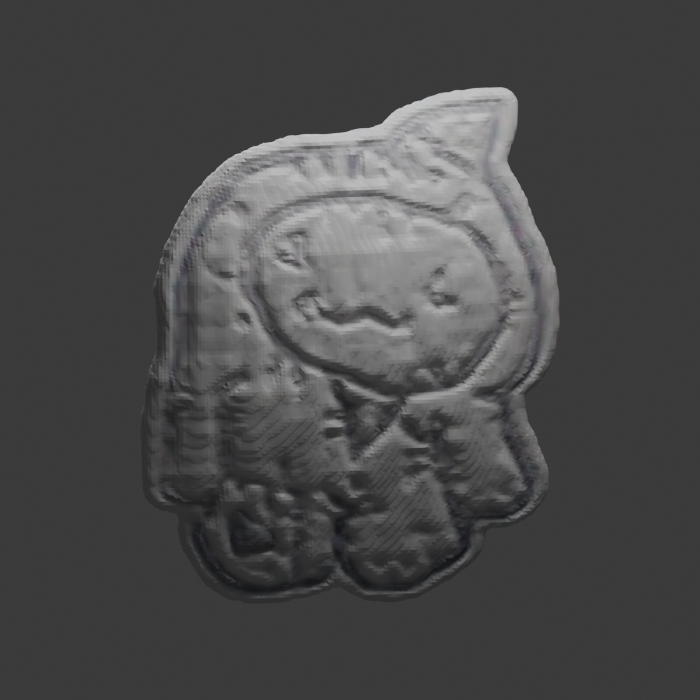

Actual inferred patchwork back with unapproved marks — Inferred reverse · artist-guided refinement pending.

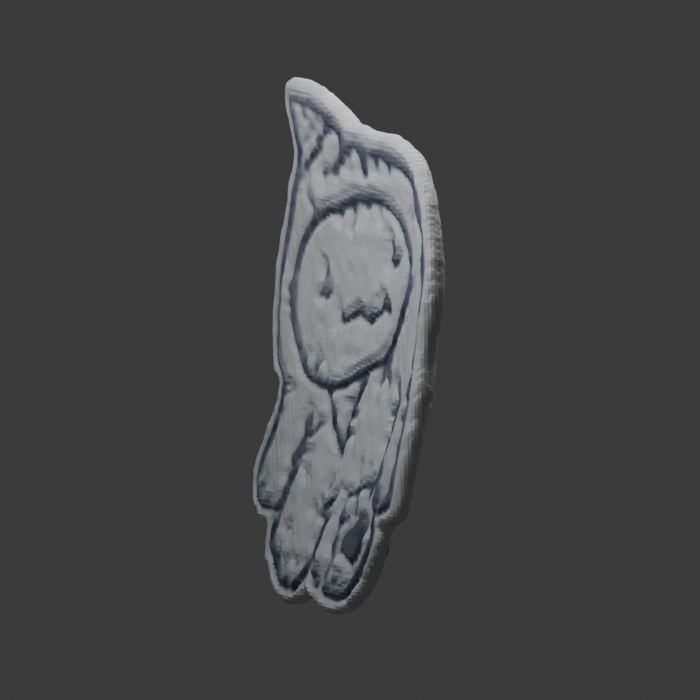

Actual side profile · generated body depth, source geometry unchanged.

Four destinations. Separate files.

All 96,524 triangles and generated vertex colors remain in the unrigged game reference. The print master retains the complete single closed body; no disconnected component or zero-area face was dropped. The display is about 150.2 mm high. The keychain is about 53.5 mm high, with the body depth compressed to 12 mm and a rear attachment. The standing mini is about 31.47 mm high on a nominal 25 mm circular base.

Download game prototype · 0.33 × 1.00 × 0.81 meters
Download display prototype · 50.00 × 117.15 × 150.20 millimeters
Download keychain prototype · 17.00 × 36.61 × 53.50 millimeters
Download mini prototype · 24.99 × 24.99 × 31.47 millimeters

Actual print STLs pass independent single-part closure, winding, positive-volume and nonzero-face checks. Fine details, support stems, ring fit, sliced layers and strength remain pending. Every shown view is a digital render; physical product photos await supervised samples.

A loop with measured openings.

The keychain uses exact unions on the closed master. Its rear post connects near 70% of body height. Five parallel opening sections preserve about 5 mm of space. These measurements do not establish minimum junction thickness, pull/drop strength or real ring fit.

Choose the next detail to refine.

Display: 0/512 chords below the editable 1.6 mm review assumption.
Keychain: 334/512 chords below the editable 2.4 mm review assumption.
Mini: 221/512 chords below the editable 1.6 mm review assumption.

The CPU review used 1,536 actual-STL chords, 256 box calibration rays and 96 independent full-mesh comparisons, which agree. Chords locate review targets; they do not certify minimum walls, self intersections or printability. Actual nozzle, material, sliced layers and artist likeness must guide refinement.

Read the sample measurements →
