The stitches still need a sculptor.

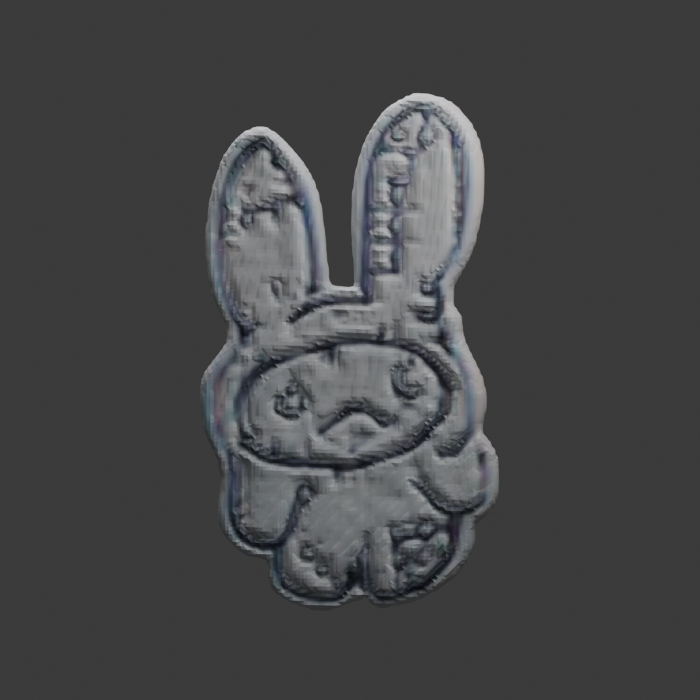

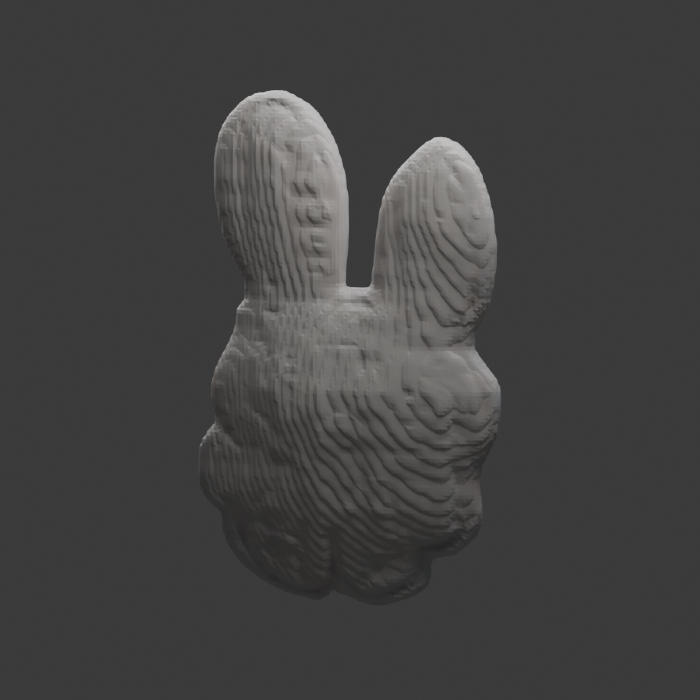

The tall ears, patchwork face and feet are recognizable. The eyes and stitches are coarse, the feet remain joined, and the inferred back has surface stripes needing refinement. The unseen reverse is a reconstruction proposal, awaiting Mattea’s direction. This is an unfinished dimensional study.
Four destinations. Individual files.
The unrigged game reference preserves every generated triangle and vertex color. Two mathematically zero-area faces remain in the raw archive and game export, awaiting cleanup; the print master keeps all 56,886 nonzero body triangles and preserves the excluded component in a sidecar. The display is about 150.2 mm high, the keychain about 53.5 mm, and the standing mini about 32.2 mm on a nominal 25 mm circular base.
- Download game prototype · 0.29 × 1.00 × 0.58 meters
- Download display prototype · 50.00 × 83.52 × 150.20 millimeters
- Download keychain prototype · 17.00 × 26.09 × 53.49 millimeters
- Download mini prototype · 24.99 × 24.99 × 32.20 millimeters
All three selected print STLs pass independent closed, consistent, positive single-part topology checks. This does not certify thin details, support removal, sliced layers, strength or printing. The visible figure and mini support stems need review. Neutral digital renders are not physical product photos.
A revised attachment, with its limits visible.
The selected keychain uses a welded import, corrected normals and a 0.10 mm voxel reconstruction. It changes the inferred surface; the earlier exact-union study remains preserved. The central opening measures about 5.01 mm, with five parallel opening sections sampled. The rear post supports the loop geometrically; minimum junction thickness, pull/drop strength and real printing remain unverified.
Where small details need attention.
- Display: 0/512 sampled chords below the editable 1.6 mm review assumption.
- Keychain: 98/512 sampled chords below the editable 2.4 mm review assumption.
- Mini: 86/512 sampled chords below the editable 1.6 mm review assumption.
The CPU check used 1,536 actual-mesh surface chords, calibrated axis/rotated boxes and 96 independent full-mesh comparisons. Surface chords are sampled review evidence, not certified minimum walls or failure rates. Actual printer, nozzle, material and extrusion paths must guide the next local refinement.
Read the measured sample report →
